Big Tex | 14 TL Split Deck Tilt – Tandem Axle

Call For A Quote

Big Tex | 14 TL Split Deck Tilt – Tandem Axle

MODEL:14 TL Split Deck Tilt - Tandem Axle

GVWR:14,000 LBS




BRAKES:all wheel electric brakes

HITCH TYPE:bumper pull

Split Deck Tilt Trailers are specially designed for hauling skid steers and compact tractors with the easy to use tilting deck for loading and unloading of your machinery, as well as a fixed portion of the deck for convenient hauling your attachments such as pallet forks, loader buckets, backhoes, and more!

This trailer allows an operator to load heavy and dangerous equipment without cumbersome ramps or gates. The bed is cushioned as it gently comes to rest using a hydraulic dampening cylinder. Low load range is perfect for hard to load items such as cars, low profile industrial equipment and small bulldozers.

Models – 14TL Tilt Equipment Trailer

  • 14TL-20 83″ x 20′ (16′ x 4′) Tilt Trailer
  • 14TL-22 83″ x 22′ (16′ x 6′) Tilt Trailer

1/4″ Diamond Plate Knife Edge

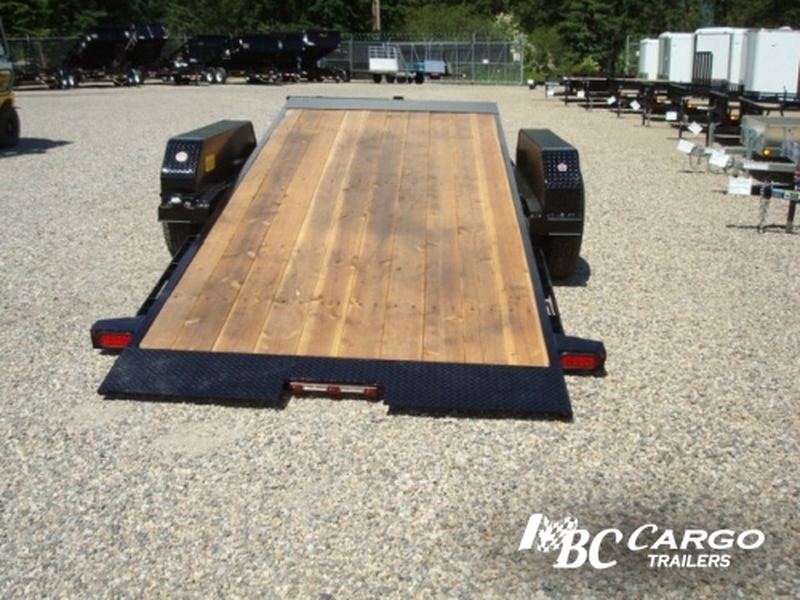

Diamond Plate Knife Edge on Rear

This Tail lays flush to the ground eliminating the “bump” that you would normally have to drive over. This is especially useful when Loading Equipment with small wheels, winching vehicles onto the deck or Loading in Wet/icy conditions

102″ Wide Overall, 83″ Width Between Fenders
2 5/16″ Adjustable Coupler
Adjustable Coupler 2 5/16

These couplers are height adjustable to allow you to level the trailer with the towing vehicle.

2″ Tubular Stop Rail
AXLES Two 7,000 Lb , 4″ Drop EZ Lube W/Electric Brakes
CROSSMEMBERS 3″ Channel, 3″ Sq. Tube
Dexter Brand Axles
Dexter Axles

Clearly the best option in the industry in axles, Dexter combines quality, value, and consistency far above any other axle on the market today!

Double Broke Diamond Plate Fenders (Removable)
Double Broke Diamond Plate Fenders (Removable)

The fenders are heavy gauge diamond plate steel for increased durability. They can also be easily removed for off-road use or easy replacement. Not only are diamond plate fenders tougher than the typical smooth plate, they also look tougher.

7-Way RV Plug

7 way plug that comes from the trailer harness.

Fabricated Stop Rail On Front
Fabricated Stop Rail on Front

To assist you when loading….Prevents Wheels from going over the front of the trailer

Finish(Prep) Steel Is Cleaned To Ensure A Professional Smooth Finish.
FRAME 6″ Channel
G.V.W.R. 14.000 Lb
Grommet Mount Sealed Lighting
Hydraulic Dampening System
Dampening Cylinder

Hydraulic dampening cylinder makes tilting up and down smooth and easy. The bed is cushioned as it gently comes to rest using a hydraulic dampening cylinder. Convenient, low maintenance tilt equipment trailers with no ramps to move, simply unlatch, tilt, and load.

JACK 12K Drop Leg Jack Against Bed Side Wind
12,000 lb Spring Loaded Drop Leg Jack

The Heavy Duty 12k spring loaded, jack saves you time and energy. When parking your trailer you simply pull the foot pin and press the jack foot to the ground, instead of having to crank to lower the jack foot. The spring loaded foot also quickly retracts to the up position to save even more time and energy.

LIGHTS D.O.T. Stop, Tail, Turn
Safety Chains 3/8″ Grd. 70 W/Safety Latch Hook (2 Each)
Spare Tire Mount (Front)
Stationary Front Deck For Added Versatility
SUSPENSION Multi-Leaf Spring W/Equalizer
Tires ST235/80R16 Radial Load Range E
TONGUE 6″ Channel Fold Back
Channel Fold Back tongue

When it comes to trailers, Big Tex has designed the industry’s best tongue anywhere. They utilize channel to Reduce Condensation and Rust in the tongues to ensure that the tongue on your unit will not flex or fail when loaded. The Channel is Stronger and Thicker than many tube steel tongues in the marketplace.

Unique Two Piece Main Frame
Wheels 16 X 6 Radial Heavy White Mod 8 Bolt
A Wide Range Of Options Are Available To Add To Or Modify The Exterior & Interior Of These Trailers. For Enquires, Please Call Us And Our Sales Team Will Assist You With Available Options.


Some photos may show optional features. There are many options and features so please check with our staff as they will be happy to assist you.
